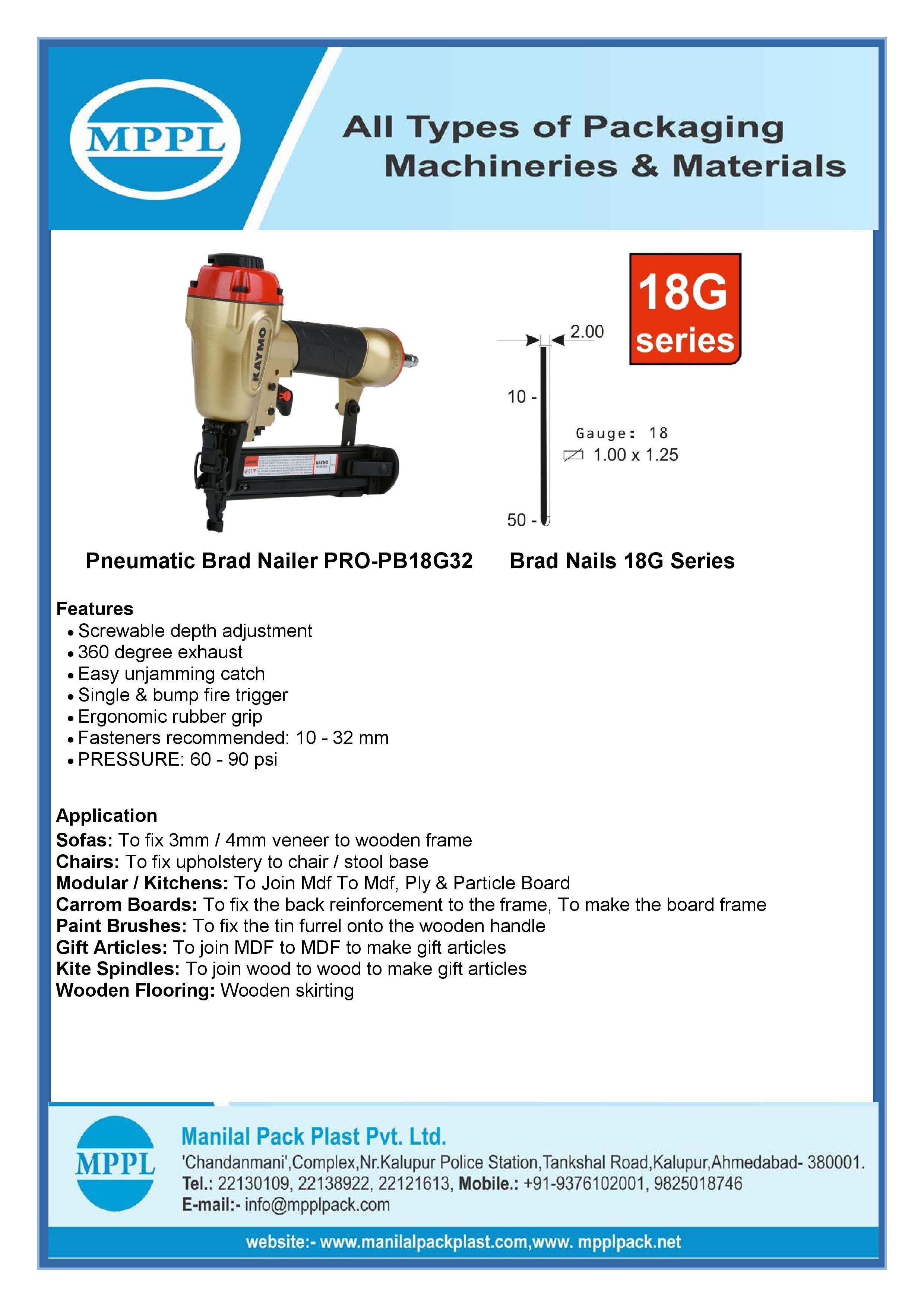

Pneumatic Brad Nailer PRO-PB18G32

Name: Pneumatic Brad Nailer PRO-PB18G32
Brand: MANILAL PACKPLAST LLP
Price: 6950 INR
Availability: InStock

Price 6950 INR/ Unit

Get a Price/Quote

MOQ : 01 Unit

Pneumatic Brad Nailer PRO-PB18G32 Specification

Color
Silver & Black

Type
Pneumatic Brad Nailer

Material
Aluminum Body with Rubberized Grip

Power Source
Compressed Air (Pneumatic)

Rated Power
N/A (Air-powered)

Dimensions
Approx. 235 mm x 55 mm x 220 mm

Weight
1.2 kg

Thread
1/4 NPT

Application
Furniture, Cabinetry, Joinery, Finishing, Trim Work

Magazine Capacity
100 pcs

Max Working Pressure
120 psi

Applicable Nail Size
Brads 18 Gauge (15-32 mm length)

Body Finish
Powder Coated

Operating Pressure
60-100 psi (4-7 bar)

Firing Mode
Sequential

Air Consumption
0.23 L/cycle

Features
Tool-free jam release, Anti-slip rubber grip, Lightweight design, Safety trigger mechanism

Nail Type
18 Gauge Brad Nails

Exhaust Direction
360° Adjustable

Model Number
PRO-PB18G32

Pneumatic Brad Nailer PRO-PB18G32 Trade Information

Minimum Order Quantity
01 Unit

Payment Terms
Cash Advance (CA)

Main Domestic Market
All India

About Pneumatic Brad Nailer PRO-PB18G32

Specification

Head	2.00 mm
Air Pressure	60 - 90 psi
Gauge	18 gauge
Model Name/Number	PRO-PB18G32
Fastener Range	10 - 32 mm
Leg Length Millimeter	10-32 mm
Wire Dimensions	1.00 x 1.25 mm

Application

Sofas:To fix 3mm / 4mm veneer to wooden frame
Chairs:To fix upholstery to chair / stool base
Modular / Kitchens:To Join Mdf To Mdf, Ply & Particle Board
Carrom Boards:To fix the back reinforcement to the frame, To make the board frame
Paint Brushes:To fix the tin furrel onto the wooden handle
Gift Articles:To join MDF to MDF to make gift articles
Kite Spindles:To join wood to wood to make gift articles
Wooden Flooring:Wooden skirting

Efficient and Reliable Performance

This pneumatic brad nailer combines high magazine capacity (100 nails) with a powerful operating range of 60-100 psi, ensuring uninterrupted workflow. Its lightweight build minimizes fatigue, while the sequential firing mechanism increases accuracy and safety during delicate finishing jobs.

Versatile and User-Friendly Features

The PRO-PB18G32s tool-free jam release and safety trigger mechanism allow quick troubleshooting and secure operation. The 360 adjustable exhaust and anti-slip grip further enhance usability across a range of environments, making it ideal for cabinetry, joinery, and trim work.

FAQs of Pneumatic Brad Nailer PRO-PB18G32:

Q: How do I load brad nails into the PRO-PB18G32 nailer?

A: To load brad nails, open the magazine by releasing the latch, then insert 18 gauge brad nails (15-32 mm length) into the magazine slot. Close the magazine securely and ensure it is properly latched before connecting the air supply.

Q: What applications is the PRO-PB18G32 suitable for?

A: This pneumatic brad nailer is perfect for furniture assembly, cabinetry, panel joinery, finishing work, and trim installations. Its precision and lightweight design make it ideal for professionals and hobbyists alike.

Q: When should I use the tool-free jam release feature?

A: Utilize the tool-free jam release whenever a nail becomes stuck or the nailer jams during operation. Simply engage the jam release lever to clear obstructions, allowing you to resume work quickly without additional tools.

Q: Where should I connect the air supply and what pressure is required?

A: Attach a compressed air supply using the 1/4 NPT thread connector, ensuring the pressure is set between 60-100 psi (4-7 bar) for optimal performance. Do not exceed the maximum working pressure of 120 psi to ensure safe operation.

Q: What benefit does the sequential firing mode provide?

A: Sequential firing mode enhances safety and accuracy by requiring the trigger to be depressed for each shot, reducing the risk of accidental firing and allowing controlled nail placement during delicate woodworking tasks.

Q: How does the 360 adjustable exhaust improve usage?

A: The 360 adjustable exhaust directs air away from you and your workspace, preventing dust and debris from interfering with your work and improving overall comfort during extended operation.
