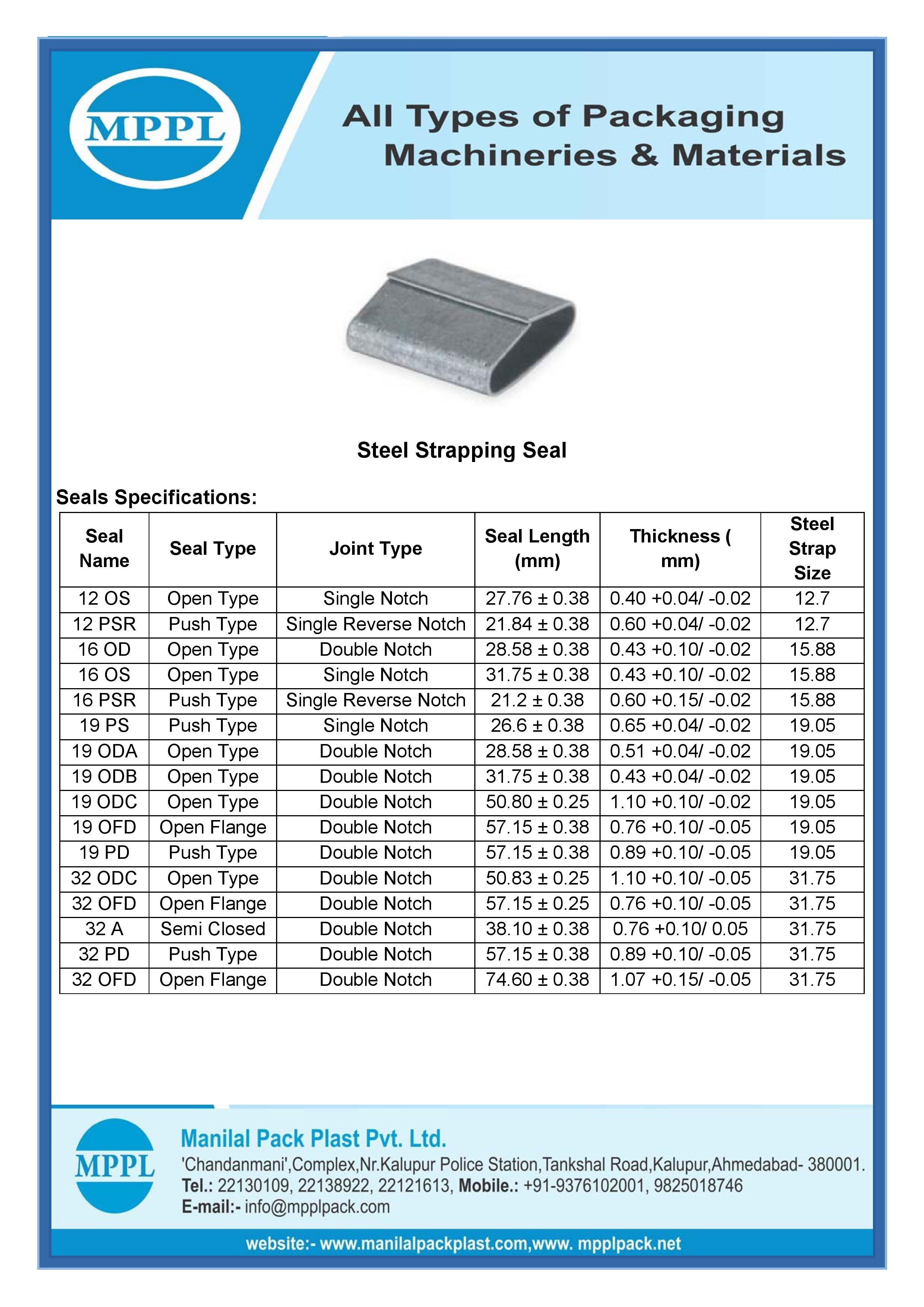

Steel Strapping Seal

Seal Name

Seal Type

Joint Type

Seal Length (mm)

Thickness ( mm)

Steel Strap Size

12 OS

Open Type

Single Notch

27.76 0.38

0.40 +0.04/ -0.02

12.7

12 PSR

Push Type

Single Reverse Notch

21.84 0.38

0.60 +0.04/ -0.02

12.7

16 OD

Open Type

Double Notch

28.58 0.38

0.43 +0.10/ -0.02

15.88

16 OS

Open Type

Single Notch

31.75 0.38

0.43 +0.10/ -0.02

15.88

16 PSR

Push Type

Single Reverse Notch

21.2 0.38

0.60 +0.15/ -0.02

15.88

19 PS

Push Type

Single Notch

26.6 0.38

0.65 +0.04/ -0.02

19.05

19 ODA

Open Type

Double Notch

28.58 0.38

0.51 +0.04/ -0.02

19.05

19 ODB

Open Type

Double Notch

31.75 0.38

0.43 +0.04/ -0.02

19.05

19 ODC

Open Type

Double Notch

50.80 0.25

1.10 +0.10/ -0.02

19.05

19 OFD

Open Flange

Double Notch

57.15 0.38

0.76 +0.10/ -0.05

19.05

19 PD

Push Type

Double Notch

57.15 0.38

0.89 +0.10/ -0.05

19.05

32 ODC

Open Type

Double Notch

50.83 0.25

1.10 +0.10/ -0.05

31.75

32 OFD

Open Flange

Double Notch

57.15 0.25

0.76 +0.10/ -0.05

31.75

32 A

Semi Closed

Double Notch

38.10 0.38

0.76 +0.10/ 0.05

31.75

32 PD

Push Type

Double Notch

57.15 0.38

0.89 +0.10/ -0.05

31.75

32 OFD

Open Flange

Double Notch

74.60 0.38

1.07 +0.15/ -0.05

31.75
